- Capacity for 80 “B” or 60 “D” punches
- Exterior Dimensions 42.30 x 34.56 x 77.24″ (1.10 x 0.878 x 1.962 m)
- Power 230v, 50/60 Hz, 18 amps

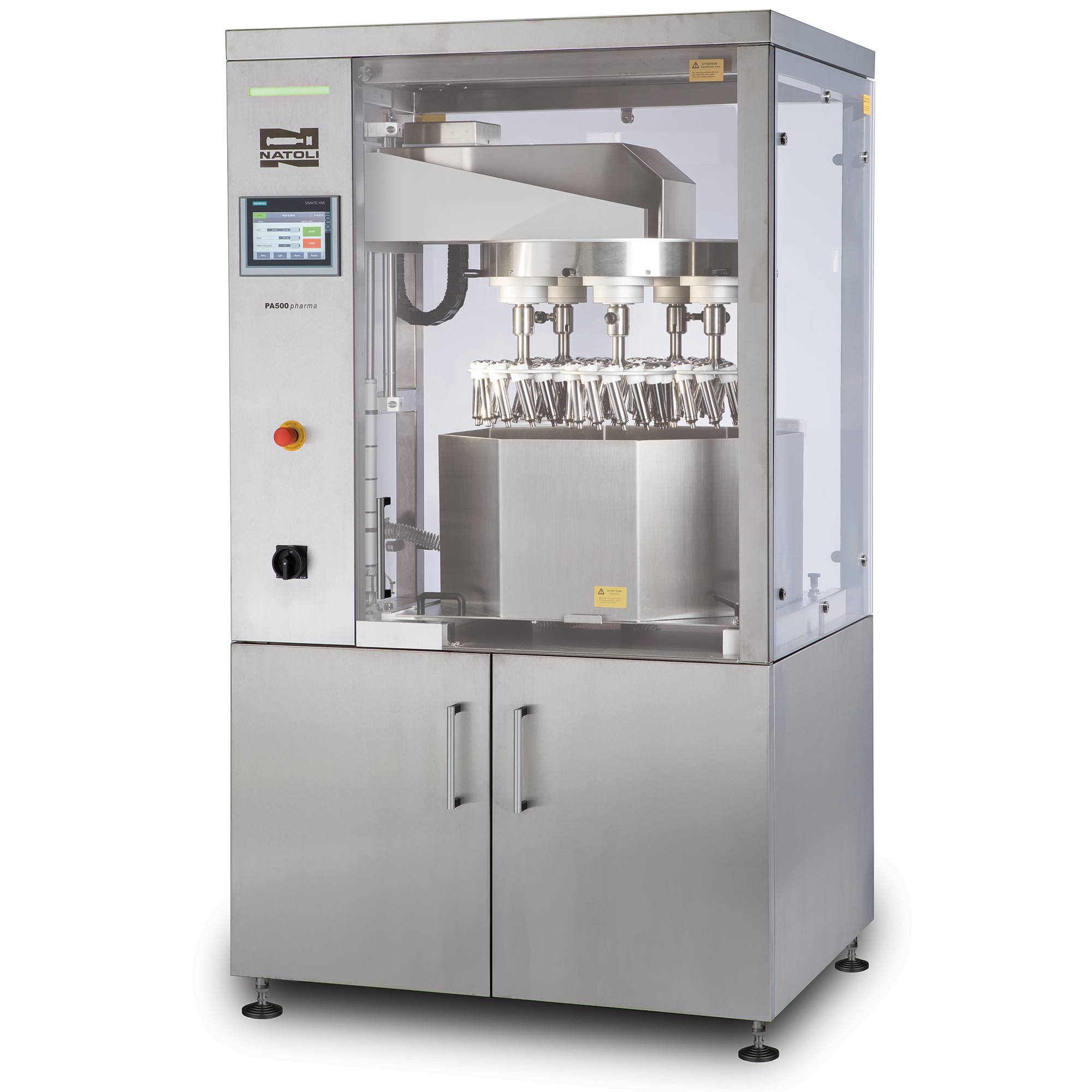

Efficiently remove product, abrasions, and harmful oxidation from tooling with Natoli’s Automated Polishing Machine. After reworking punch tips with the Natoli Polishing Station’s unsewn buffing wheel (see pages 70), simply load punches and media into the automated polishing machine, set cycle time, and push start. Fully immersed tooling is moved through polishing media in a circular motion, ensuring consistent polishing results every time. Additional punch and die holders can be purchased separately.
- One-year manufacturer’s warranty
- Includes IQ/OQ documentation
- Includes training USB card
- 7″ Siemens touchscreen
- Recipe/batch storage
- Quick-release system for tooling holders
- Punch holders available for most tooling sizes
- Interior LED lights
- Small footprint machine
- Stainless steel frame and bottom cover
- Batch management with printing option
- Octagonal process container, allowing optimal movement of the granulate during the polishing process
- Stainless steel cover allows for easy cleaning of the polishing chamber
- Lower storage cabinet for media, additional holders, and compounds
- Stainless steel media mixing paddle
- Machine alerts user when new media is required
- Includes impregnation oil
- Includes dedusting nozzles at process container
